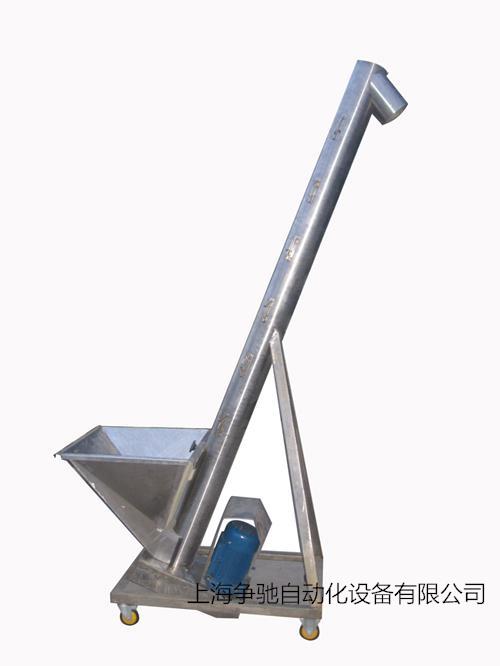

Spiral feeding machine is the modern chemical, pharmaceutical, food, metallurgy, building materials, agricultural and other light, heavy industry must be one of the supporting equipment, he provides the work efficiency, accurate transport, quality reliable solid and durable and in the process of feeding raw materials are completely free from dampness without pollution, without foreign matter, no leakage, the feeding process since the transport of, to avoid the danger of air feeding, reduce labor intensity, improve production efficiency, is a modern enterprise of civilization production of one of the essential.

Spiral feeding machine and a variety of specifications extruder, high-speed mixing machine supporting the use, plastic powder, particles from the material storage box, by the screw automatic feeding (height can be determined according to the user), and by the processor control feeding, with automatic feeding, hopper quick and labor-saving, safe and reliable, and other characteristics.

The main technical parameters:

Feeding motor power KW 0.75 1.1 1.5 1.5

The pusher motor power KW 0.55 0.75 1.1 1.75

Feeding pipe diameter mm 76102120140

Feeding height M

The feeding amount of kg/H 600100020003000

Tank capacity kg 80150200250

The material box size (L*w*H) cm 65*65*80 100*75*80 120*80*80 160*80*80

Machine weight kg 80150200300

advantage

1, wide temperature range, anti adhesion, and baffle plate, lifting angle, easy to clean, easy maintenance.

2, used to transport all kinds of environment, suitable for a variety of special occasions and purposes.

3, with high strength, acid, alkali, salt and other characteristics, used for conveying various environments.

accuracy

(1) factors affecting the positioning of different ways. Such as mechanical block positioning, positioning accuracy factors and block stiffness and contact block when the speed of.

(2) has great influence on the positioning accuracy positioning speed. This is because the positioning speed is not the same, different parts of the energy dissipation must move. Usually, in order to reduce the positioning error should be reasonable control of positioning speed, such as improving the performance and efficiency of buffer buffer buffer device, drive control system makes the moving parts timely deceleration.

(3) the manufacturing precision manipulator and installation speed accuracy has a direct impact on the positioning accuracy.

(4) motion of the weight of the moving parts of the manipulator itself weight includes the weight and the weight of the grasped object. Influence of movement weight on the positioning accuracy greatly. Usually, the moving parts weight increases, reduce the positioning accuracy. Therefore, the design should not only reduce the weight of moving parts of itself, but also to consider when working grasp of the impact of weight change.
