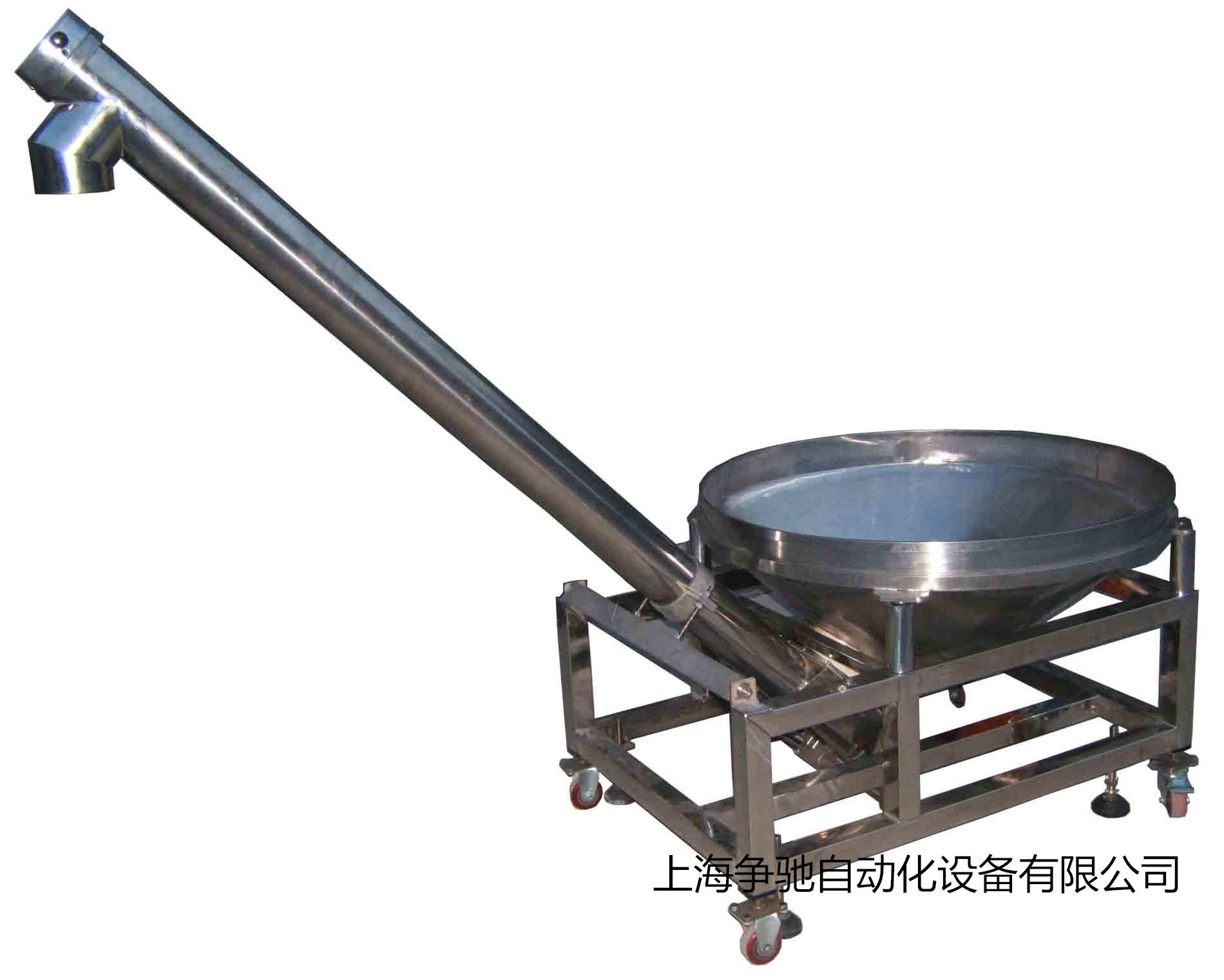

Screw feeding machine (Yuan Dou)

Article source：http://www.zhengchiyw.com Release time：2016-02-23 13:37 Browse times：

Spiral feeding machine and a variety of specifications extruder, high-speed mixing machine supporting the use, plastic powder, particles from the material storage box, by the screw automatic feeding (height can be determined according to the user), and by the processor control feeding, with automatic feeding, hopper quick and labor-saving, safe and reliable, and other characteristics.

Technical parameters:

The feeding speed of 1 cubic meters / hour

Tank volume 1110 liters

The three-phase 380v220v power supply

The power of the driving motor vibration motor 70W 750W;

The weight of 80KG

Tank size diameter: 638mm diameter: 658mm

Feed from the ground 1600mm

Functional characteristics

1, the use of fixed to the spindle motor eccentric block stationarity slewing materials vibration box, thus avoiding the bad fluidity material bridging. Adjustable amplitude, excitation efficiency.

2, feeding pipe and the vibration box public type design, make the machine more stable operation

3, using clamp screw end seat, convenient in disassembly when the whole spiral out, convenient cleaning.

4, the Bu hoop fixed soft interface, quick and easy disassembly.

5, installation of sensors and intelligent control circuit for material level control, automatic feeding or overload alarm function.
